Frame

38859

Untraced

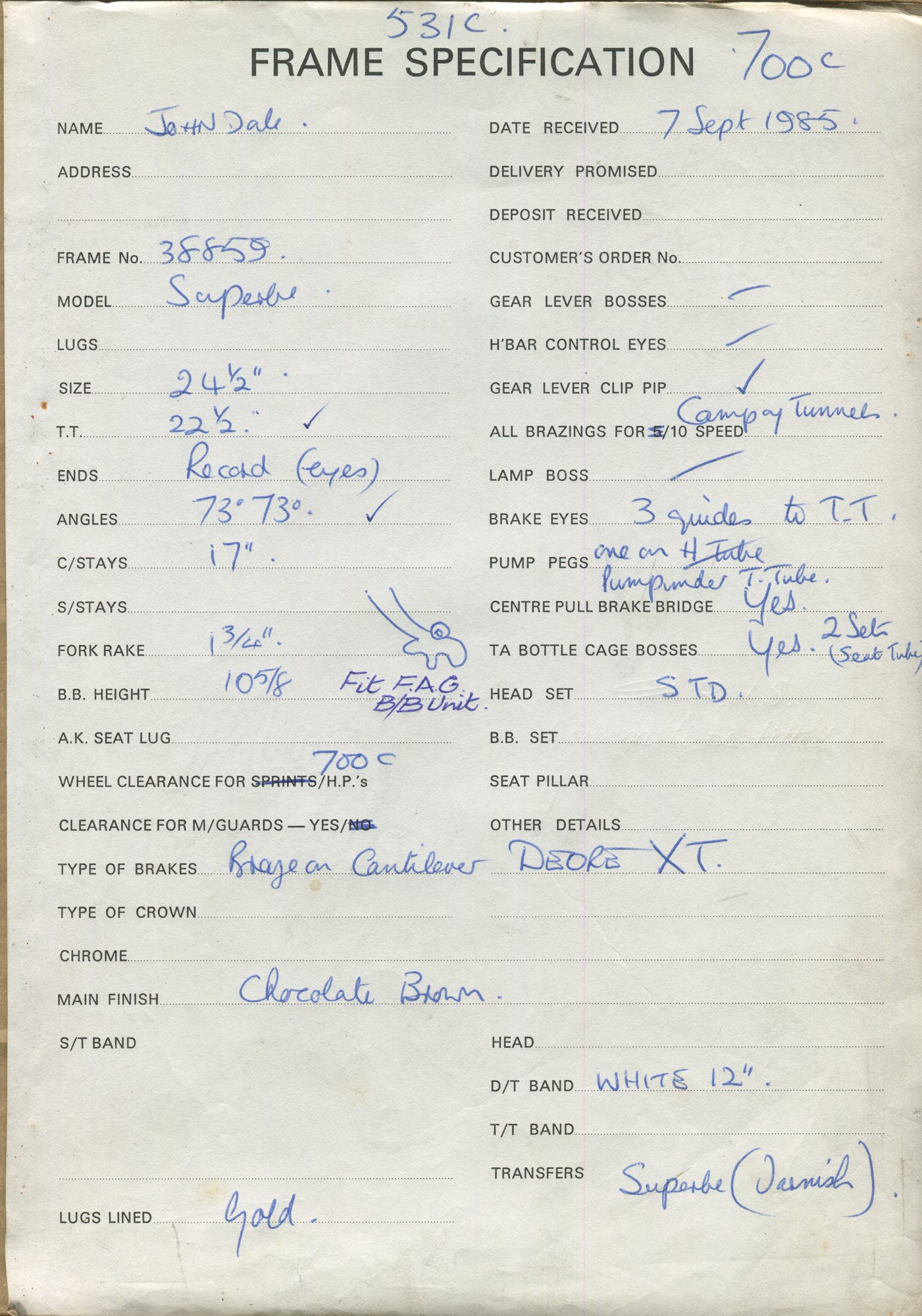

“531C” and “700c” are written across the head of the sheet, and no address is recorded — the name stands alone in the block. The bottom bracket line adds “Fit F.A.G. B/B unit”, and a small pencil doodle sits between the seatstays and fork-rake lines. The bottle cage entry “Yes. 2 sets (seat tube” runs off the right-hand edge, so where the second set was to go is lost. No delivery promise or deposit is recorded.

Ordered: 7 Sept 1985
Tubing: 531 C
Frame: 24½"
Top tube: 22½"
Angles: 73° / 73°
Forks: 1¾" rake
Ends: Record (eyes)
Chainstays: 17"
B/bracket: 10⅝, “Fit F.A.G. B/B unit”
Headset: STD
Wheels: 700c, HPs (sprints struck out), with mudguard clearance
Brazed on: Gear lever clip pip (ticked), Campag tunnels for 10-speed (5 struck out), “3 guides to T.T.” against the brake eyes, pump pegs “one on H tube, pump under T. tube”, centre-pull brake bridge “Yes”, TA bottle cage bosses “Yes. 2 sets (seat tube” with the bracket running off the edge of the sheet
Finish: Chocolate brown, lugs lined gold, white 12" down-tube band, Superbe transfers (varnish)
Customer: John Dale

Own this sheet

£110

A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

See it framed — £110

Print only £35

See it before you buy · Pay by card or PayPal · Free UK postage

A print of the 38859 sheet, framed — to scale above a two-metre sofa

Own it? Remember it?

Nobody has come forward for 38859 yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.

Send photographs and what you know

Read before anything appears · Nothing published without it
