Frame

81116

UntracedLedger: sold

Tubing: 531 S/L, metric
Frame: 24" racing
Top tube: 22¾"
Angles: 74° / 74°
Forks: 1¼" × 14½" bare (Cinelli crown, as Tony)
Ends: Super Record
Chainstays: 16¼"
Seatstays: 5/8"
B/bracket: 10 5/8"
Headset: Dura-Ace
Equipment: Sprints only
Brazed on: Pip, 10 speed under bracket, Saba guides top of top tube, TA bosses plus reinforcements, Allen key seat lug
Finish: Dark bronze poly, lugs lined light blue, Superbe transfers
Customer: Andrew Gill, Bulwell
Signed: S. Standard

Own this sheet

£85

Giclée on cotton rag, oak or black ash, mounted and glazed. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

Pay by card or PayPal · Free UK postage

Is this your frame? Tell us where it ended up.

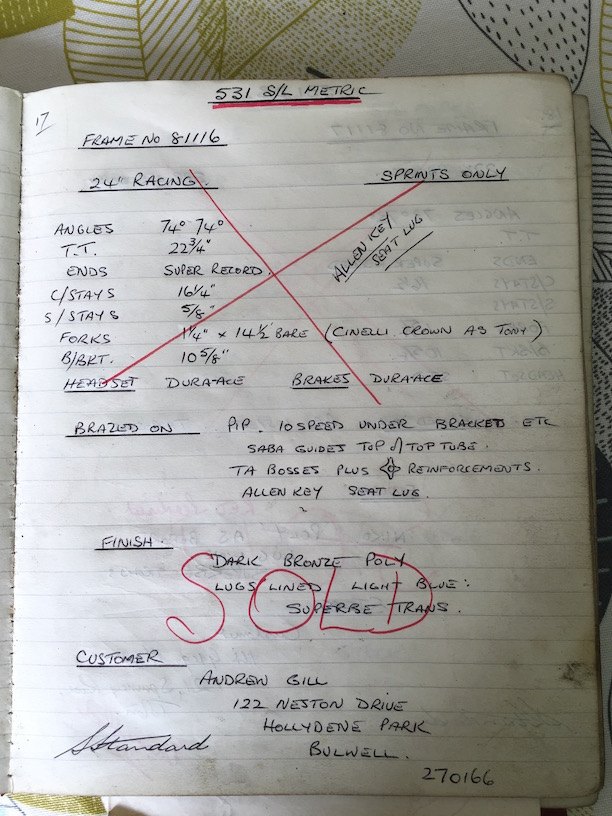

As written

The page, line by line

Transcribed as it appears, including the abbreviations. Underlining and the red pencil struck across the job are on the sheet itself.

531 S/L METRIC
FRAME NO 81116
24" RACING    SPRINTS ONLY
ANGLES    74° 74°
T.T.    22¾"    ALLEN KEY SEAT LUG
ENDS    SUPER RECORD
C/STAYS    16¼"
S/STAYS    5/8"
FORKS    1¼" × 14½ BARE (CINELLI CROWN AS TONY)
B/BKT.    10 5/8"
HEADSET    DURA-ACE    BRAKES    DURA-ACE
BRAZED ON    PIP, 10 SPEED UNDER BRACKET ETC
SABA GUIDES TOP OF TOP TUBE.
TA BOSSES PLUS REINFORCEMENTS.
ALLEN KEY SEAT LUG.
FINISH.  DARK BRONZE POLY
LUGS LINED LIGHT BLUE.
SUPERBE TRANS.
SOLD
CUSTOMER    ANDREW GILL, [address redacted], BULWELL.
S. Standard
