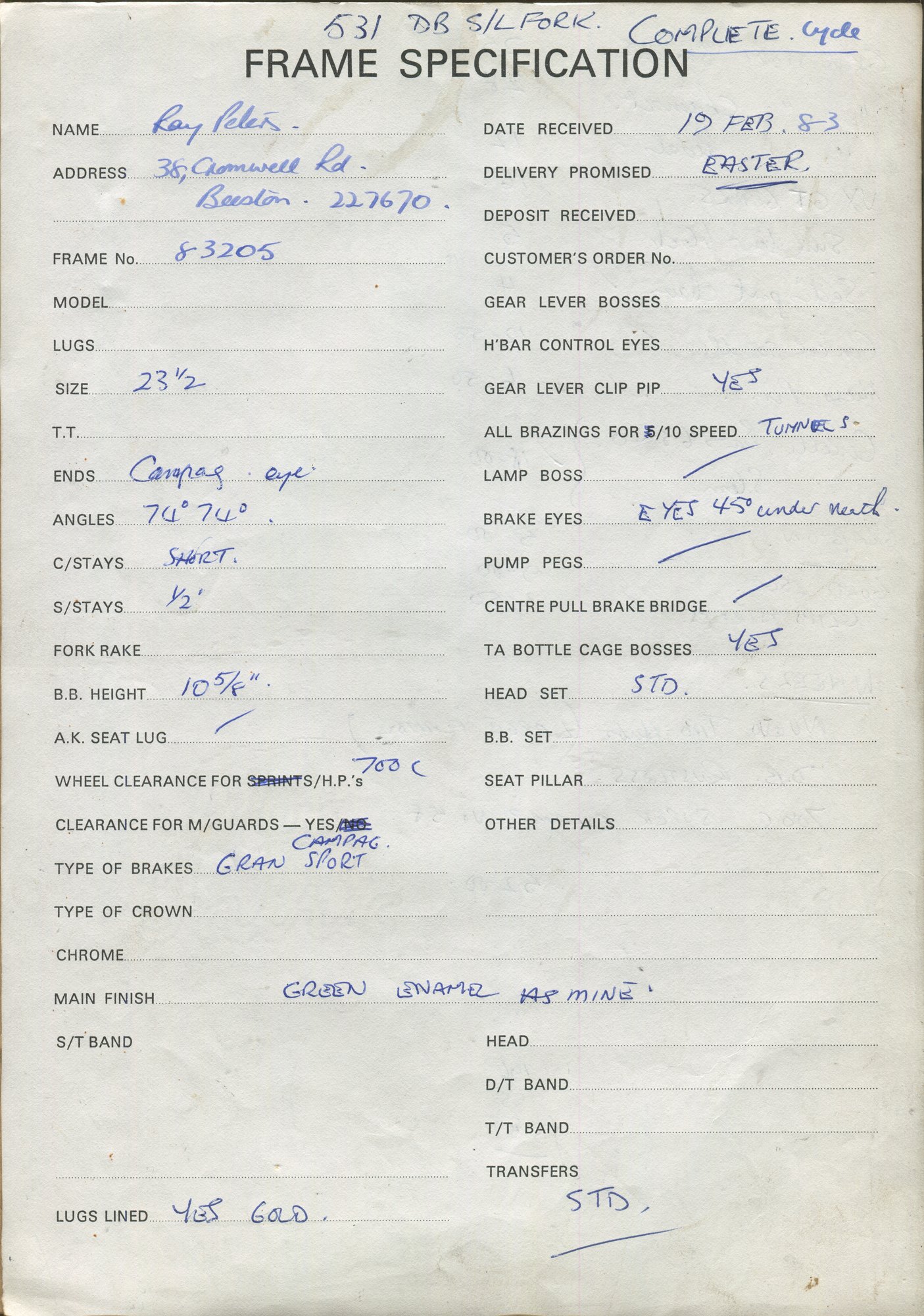

Frame
83205
A complete cycle rather than a frameset, promised for Easter. The finish is given as "green enamel as mine" — the same green as Sid's own bike.
- Ordered
- 19 February 1983
- Tubing
- 531 DB, single lateral fork
- Frame
- 23½"
- Angles
- 74° / 74°
- Ends
- Campagnolo eyes
- Chainstays
- Short
- Seatstays
- ½"
- B/bracket
- 10 5/8"
- Headset
- Standard
- Wheels
- 700c
- Equipment
- 700c, with mudguard clearance
- Brazed on
- Gear lever clip pip, tunnels for 10 speed, brake eyes 45° underneath, TA bottle cage bosses
- Finish
- Green enamel, lugs lined gold, standard transfers
- Customer
- Ray Peters, Beeston, Nottingham
Own this sheet
£110
A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.
See it before you buy · Pay by card or PayPal · Free UK postage
Own it? Remember it?
Nobody has come forward for 83205 yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.
Send photographs and what you knowRead before anything appears · Nothing published without it

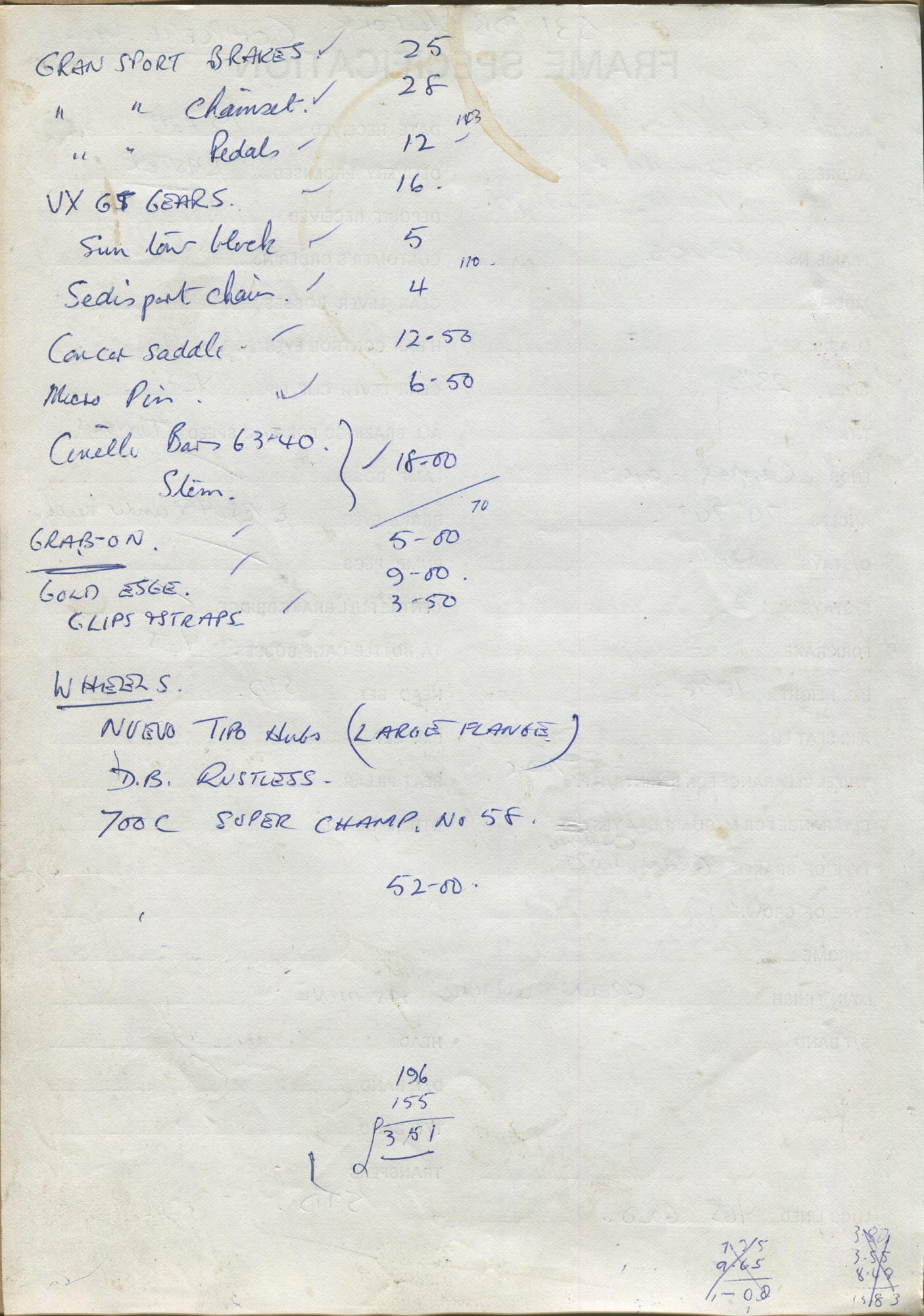

One more page in the folder
Kept in the folder with the worksheet and scanned with it: the build written out and ticked off as it was fitted, a letter, a sketch, the second side of the sheet. The worksheet is the record; these are what was going on around it. Tap one to read it full size.
