Frame
2186

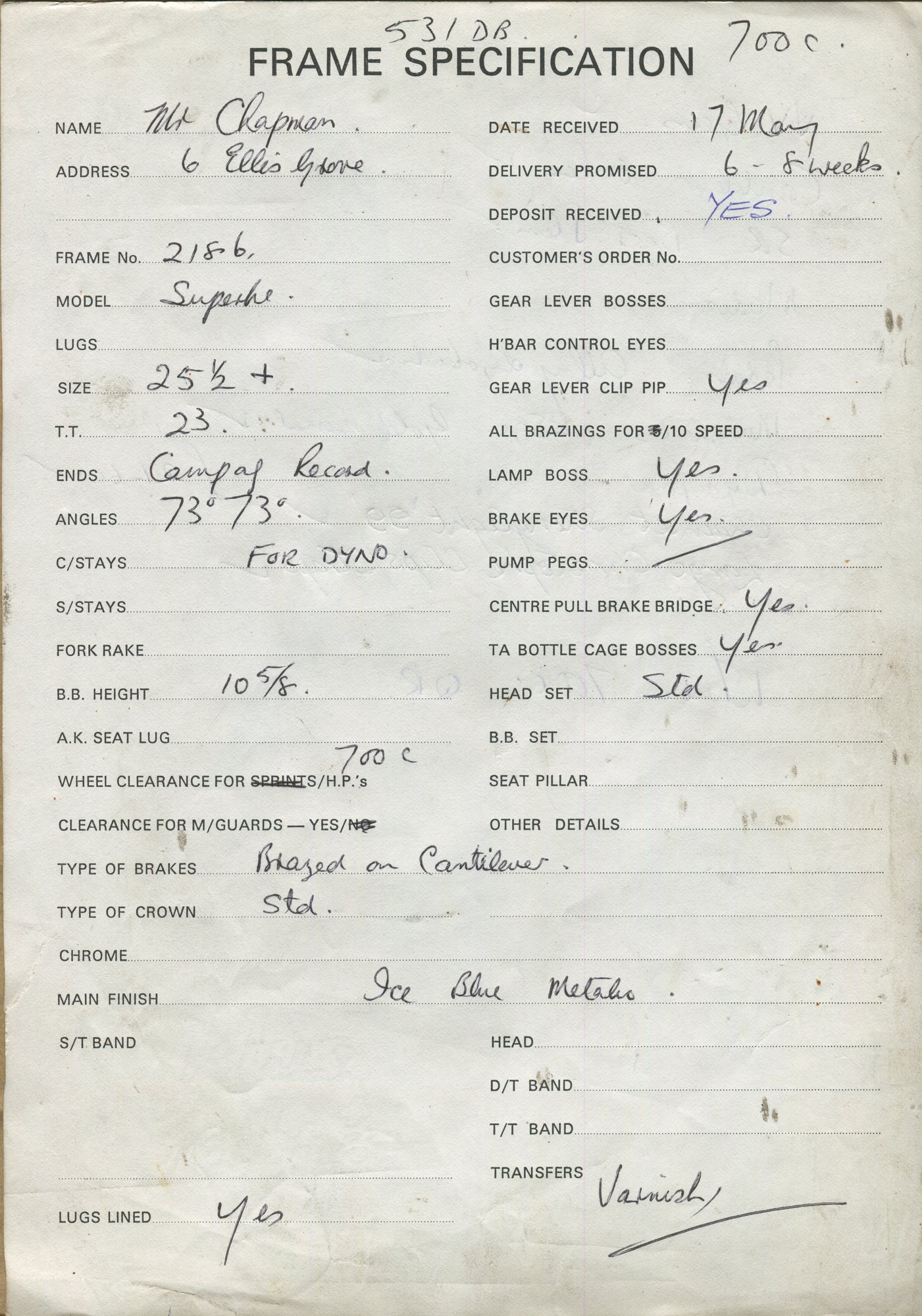

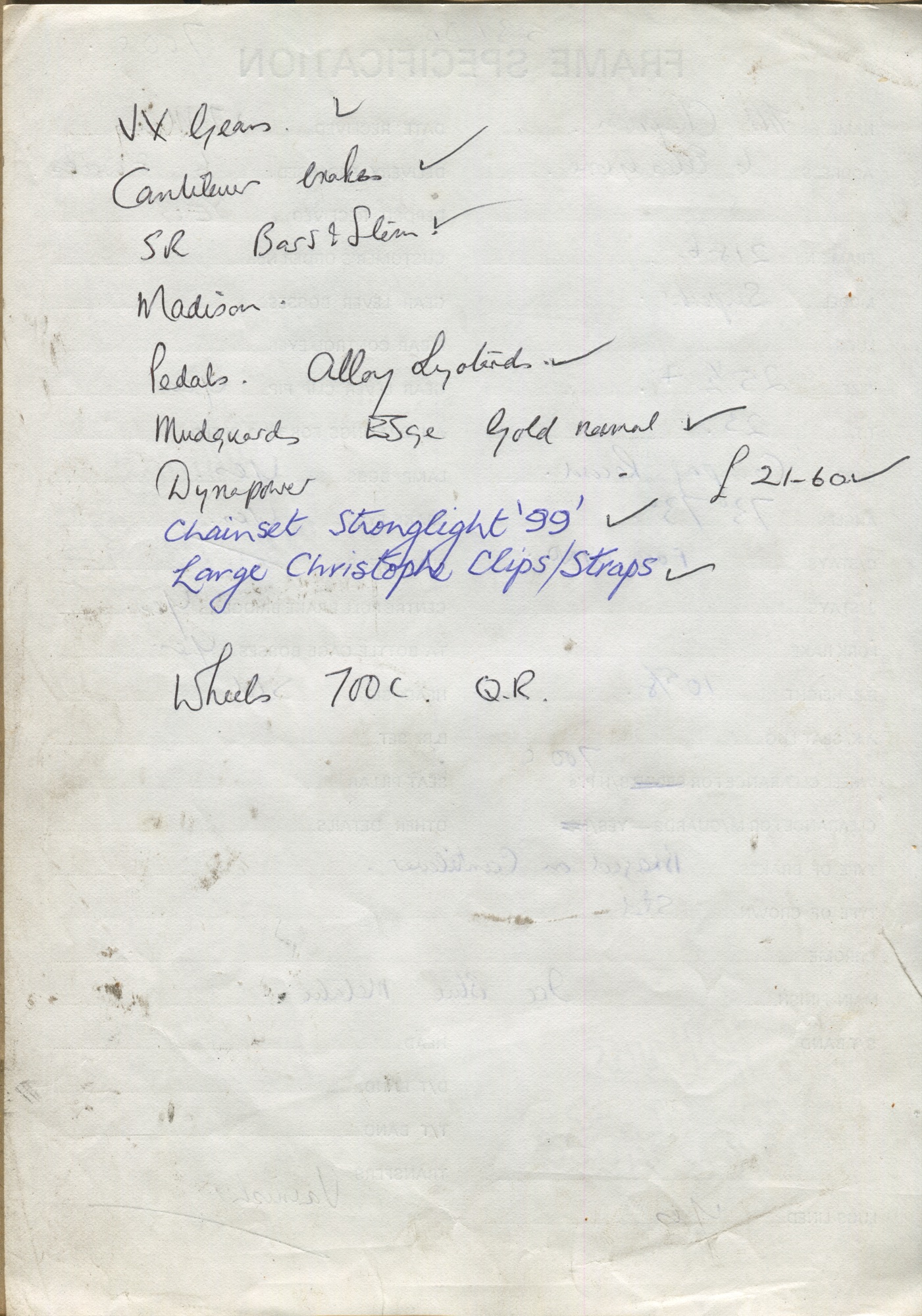

A touring bicycle: cantilevers, mudguards, a lamp boss and a dynamo boss on the chainstay, where the sheet simply says “for dyno”. Delivery promised at six to eight weeks, deposit taken. A second sheet is filed with it listing the build — SunTour VX gears, cantilever brakes, SR bars and stem, a Madison saddle, alloy Lyotard pedals, ESGE gold mudguards, a Dynapower at £21.60, a Stronglight 99 chainset, large Christophe clips and straps, and 700c quick-release wheels. Every line is ticked off, so this is the list as it was actually assembled rather than as it was quoted.
- Ordered
- 17 May
- Tubing
- 531 DB
- Frame
- 25½" and a bit
- Top tube
- 23"
- Angles
- 73° / 73°
- Forks
- Standard crown
- Ends
- Campagnolo Record
- Chainstays
- Bossed for a dynamo
- B/bracket
- 10 5/8" height
- Headset
- Standard
- Wheels
- 700c quick release, HPs (sprints struck out), with mudguard clearance
- Brazed on
- Gear lever clip pip, all brazings for 10 speed, lamp boss, brake eyes, centre-pull brake bridge, TA bottle cage bosses, and a dynamo boss on the chainstay. No pump pegs.
- Finish
- Ice blue metallic, lugs lined, varnish transfers
- Customer
- Mr Chapman, Ellis Grove
Own this sheet
£110
A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.
See it before you buy · Pay by card or PayPal · Free UK postage
Own it? Remember it?
Nobody has come forward for 2186 yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.
Send photographs and what you knowRead before anything appears · Nothing published without it
One more page in the folder
Kept in the folder with the worksheet and scanned with it: the build written out and ticked off as it was fitted, a letter, a sketch, the second side of the sheet. The worksheet is the record; these are what was going on around it. Tap one to read it full size.
