Frame

2786

Untraced

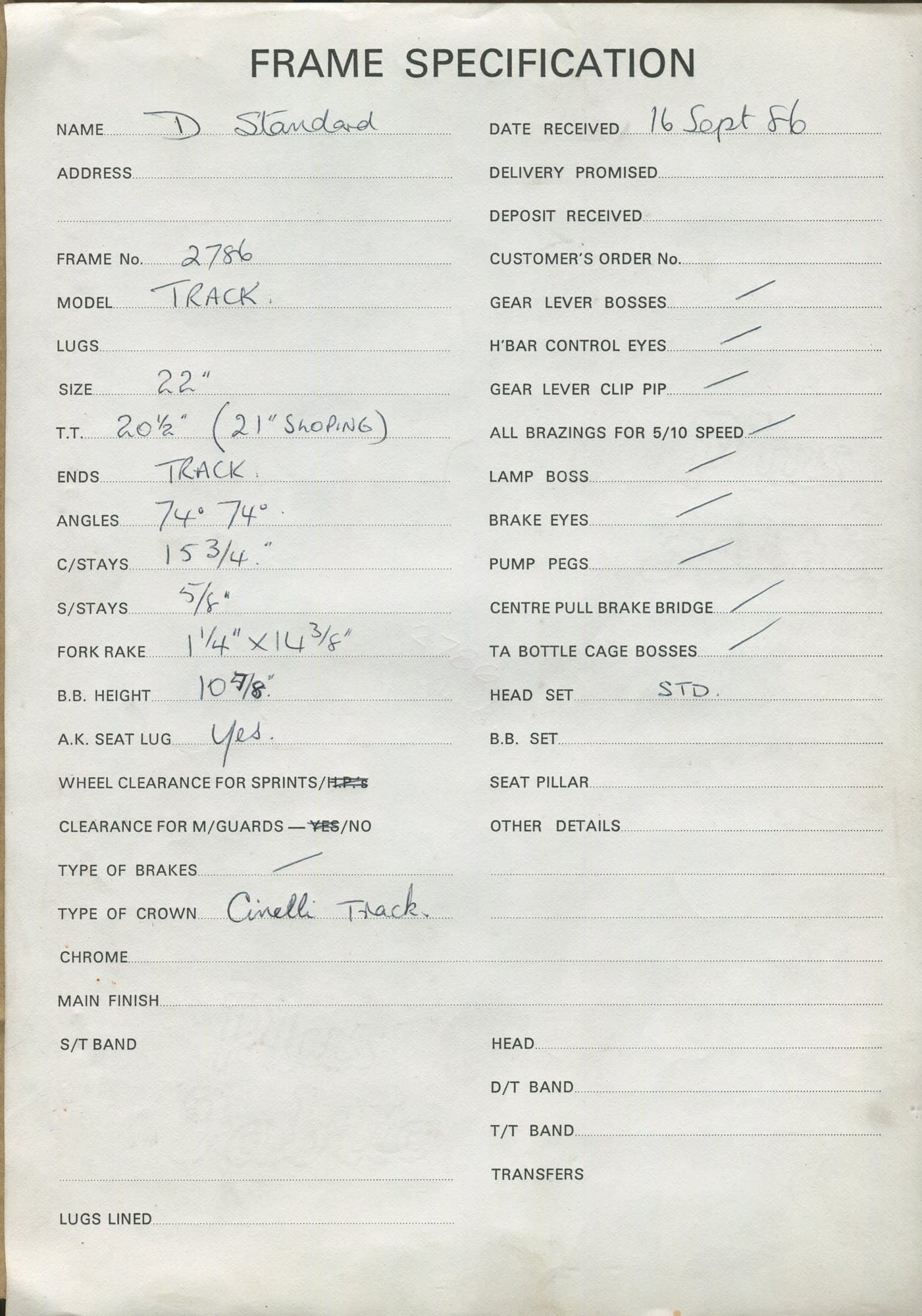

A track frame with a sloping top tube, written “20½" (21" Sloping)”. The name is written “D Standard” and the address left blank — the surname is the shop's own, though the sheet says nothing more. No brakes, finish or transfers are recorded, and the bottom bracket height figure looks over-written and could read 10⅝" rather than 10⅞".

Ordered: 16 Sept 86
Frame: 22"
Top tube: 20½" (21" sloping)
Angles: 74° / 74°
Forks: 1¼" x 14⅜", Cinelli Track crown
Ends: Track
Chainstays: 15¾"
Seatstays: ⅝"
B/bracket: 10⅞" height
Headset: STD
Wheels: Sprint clearance (H.P.'s struck out), no mudguard clearance (Yes struck out)
Brazed on: Allen-key seat lug (yes); every other braze-on box on the right of the sheet is struck through
Customer: D Standard

Own this sheet

£110

A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

See it framed — £110

Print only £35

See it before you buy · Pay by card or PayPal · Free UK postage

A print of the 2786 sheet, framed — to scale above a two-metre sofa

Own it? Remember it?

Nobody has come forward for 2786 yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.

Send photographs and what you know

Read before anything appears · Nothing published without it
