Frame

81104

UntracedLedger: sold

Ordered: 23-4-81
Tubing: 531 DB
Frame: 25½" time trial frame, no guard clearance
Angles: 74° / 74°
Forks: 1¼" × 14½"
Ends: Campag Super Record
Chainstays: 16½" (16" minimum, sprints only)
B/bracket: 10¾"
Headset: Tange 20 SWG, chain race fitted
Equipment: Sprints only
Brazed on: TA bosses, pip, Campag tunnel 5 speed only. Top bridge 1¼", bottom bridge 1 3/8"
Finish: P.O. red enamel, gold head and 5" seat tube panel, white lug line
Customer: David Cuttill, Stapleford
Signed: S. Standard

Own this sheet

£85

Giclée on cotton rag, oak or black ash, mounted and glazed. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

Pay by card or PayPal · Free UK postage

Is this your frame? Tell us where it ended up.

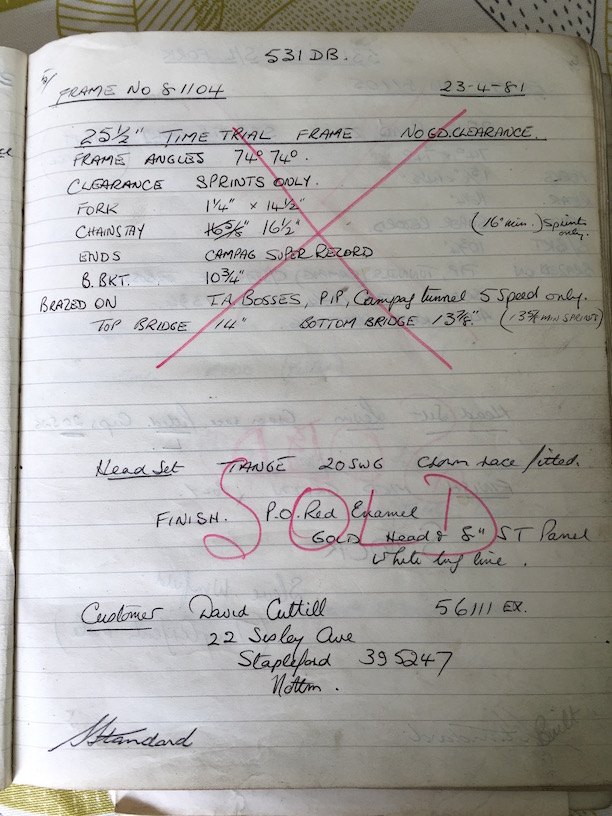

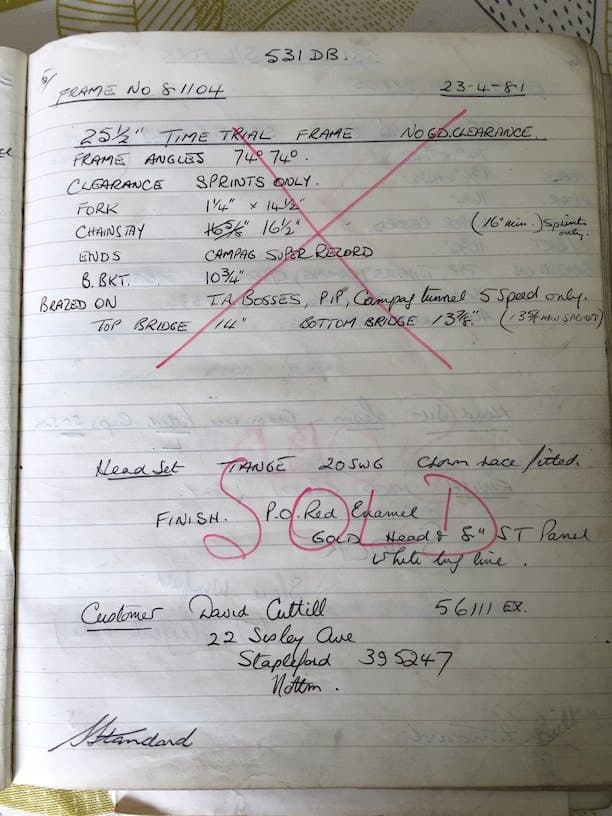

As written

The page, line by line

Transcribed as it appears, including the abbreviations. Underlining and the red pencil struck across the job are on the sheet itself.

531 DB.
FRAME NO 81104
23-4-81
25½" TIME TRIAL FRAME    NO GD. CLEARANCE.
FRAME ANGLES 74° 74°.
CLEARANCE    SPRINTS ONLY.
FORK    1¼" × 14½"
CHAINSTAY    16½"    (16" min. sprints only)
ENDS    CAMPAG SUPER RECORD
B. BKT.    10¾"
BRAZED ON    TA BOSSES, PIP, Campag tunnel 5 speed only.
TOP BRIDGE 1¼"    BOTTOM BRIDGE 1 3/8"    (1 3/8 min sprint)
Head Set    TANGE 20 SWG chain race fitted.
FINISH.    P.O. Red Enamel
GOLD Head & 5" ST Panel
White lug line.
SOLD
Customer  David Cuttill, Stapleford, Nottm.
S. Standard
