Frame

81105

UntracedLedger: stock

Noted on the sheet as "Tony Argent's mate" — Argent took 81108 a few pages later.

Tubing: 531 DB
Frame: 22½" road
Top tube: 22"
Angles: 74° / 74°
Forks: 1 5/8" × 14½"
Fork type: S/L fork
Ends: Super Record
Chainstays: 16¼"
B/bracket: 10¾"
Headset: Levin, chain race fitted, cups 20 SWG
Equipment: Sprints only, tight clearance
Brazed on: Pip, tunnels (Campag), chainstay eye, TA bosses. Bridges — top 1 3/4, bottom 1 3/4. Allen key seat lug
Finish: Medium green poly
Customer: Steve Winfield
Signed: S. Standard

Own this sheet

£110

A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

See it framed — £110

Print only £35

See it before you buy · Pay by card or PayPal · Free UK postage

A print of the 81105 sheet, framed — to scale above a two-metre sofa

Own it? Remember it?

Nobody has come forward for 81105 yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.

Send photographs and what you know

Read before anything appears · Nothing published without it

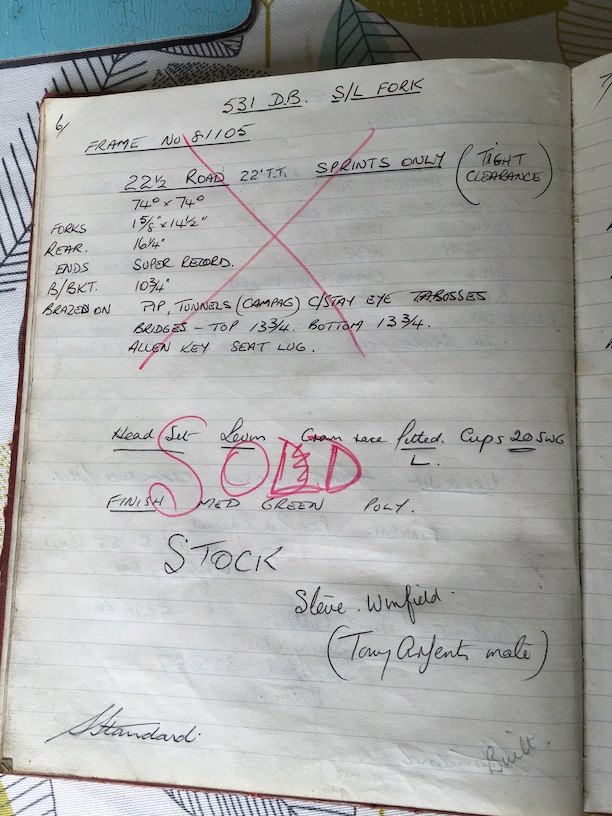

As written

The page, line by line

Transcribed as it appears, including the abbreviations. Underlining and the red pencil struck across the job are on the sheet itself.

531 D.B.    S/L FORK
FRAME NO 81105
22½ ROAD    22 T.T.    SPRINTS ONLY    (TIGHT CLEARANCE)
74° × 74°
FORKS    1 5/8" × 14½"
REAR.    16¼"
ENDS    SUPER RECORD.
B/BKT.    10¾"
BRAZED ON    PIP, TUNNELS (CAMPAG) C/STAY EYE, TA BOSSES
BRIDGES — TOP 1 3/4. BOTTOM 1 3/4.
ALLEN KEY SEAT LUG.
Head Set  Levin  Chain race fitted. Cups 20 SWG
FINISH  MED GREEN POLY.
STOCK
SOLD
Steve Winfield.
(Tony Argent's mate)
S. Standard.
