Frame

82117

Untraced

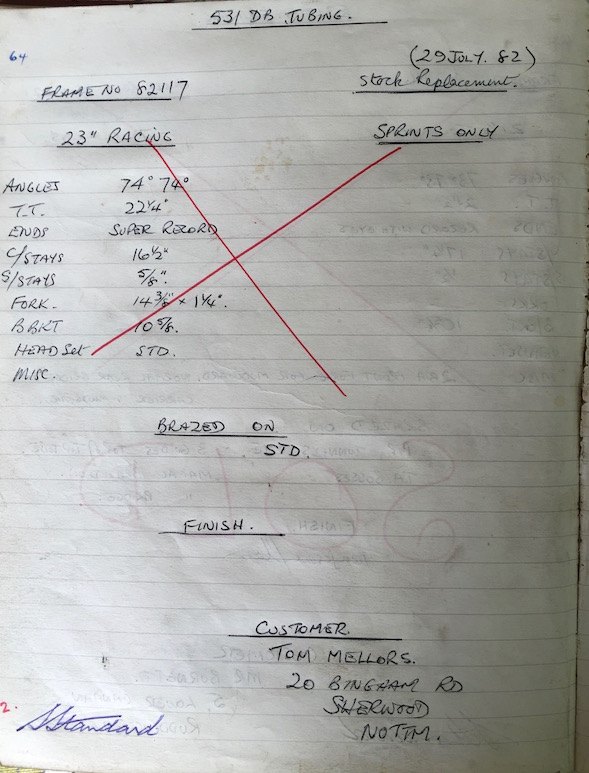

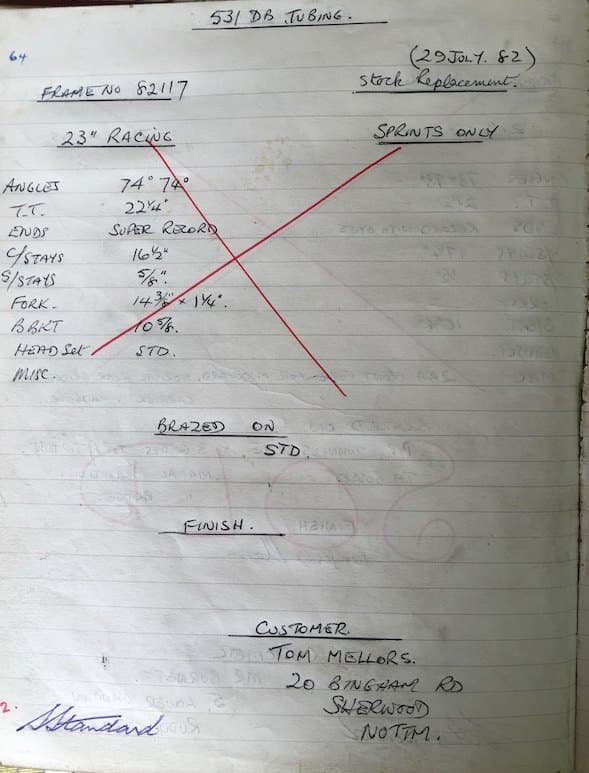

Marked “Stock Replacement” and “Sprints only”, later sold to Tom Mellors, whose name and address are entered under CUSTOMER. The FINISH heading is left blank. The fork line is written length first and its small fraction is hard to be sure of: it reads best as 14⅜" but could be 14 3/16". The specification is struck through and a signature reading “S Standard” sits at the foot.

Ordered: 29 July. 82
Tubing: 531 DB tubing
Frame: 23"
Top tube: 22¼"
Angles: 74° / 74°
Forks: 14⅜" x 1¼"
Ends: Super Record
Chainstays: 16½"
Seatstays: ⅝"
B/bracket: 10⅝
Headset: STD.
Wheels: Sprints only
Brazed on: STD.
Customer: Tom Mellors, Sherwood, Nottingham

Own this sheet

£110

A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

See it framed — £110

Print only £35

See it before you buy · Pay by card or PayPal · Free UK postage

A print of the 82117 sheet, framed — to scale above a two-metre sofa

Own it? Remember it?

Nobody has come forward for 82117 yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.

Send photographs and what you know

Read before anything appears · Nothing published without it
