Frame

82116

Untraced

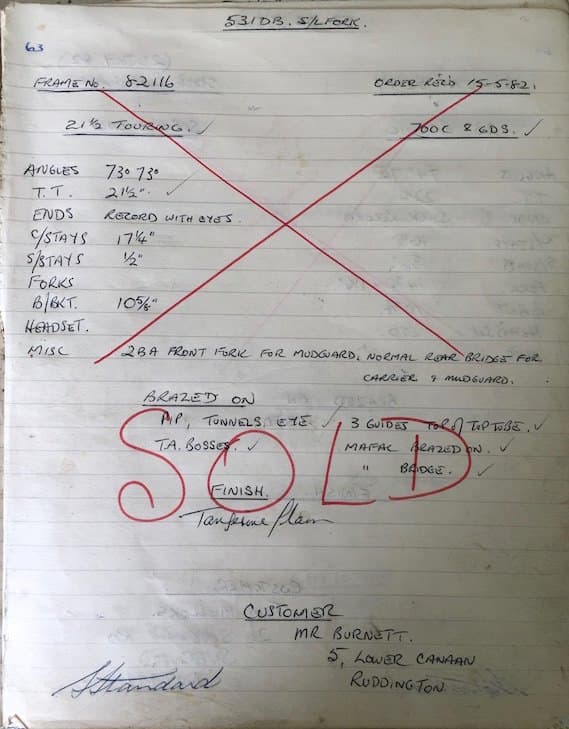

Marked “Order rec'd 15-5-82” with the model line and wheel line each ticked. The MISC line carries an instruction running onto the next rule: “2BA front fork for mudguard. Normal rear bridge for carrier & mudguard.” The FORKS and HEADSET lines are left blank, “SOLD” is written large across the lower half, the specification is crossed through, and a signature reading “S Standard” sits at the foot.

Ordered: 15-5-82
Tubing: 531 DB, S/L fork
Frame: 21½"
Top tube: 21½"
Angles: 73° / 73°
Ends: Record with eyes
Chainstays: 17¼"
Seatstays: ½"
B/bracket: 10⅝"
Wheels: 700c & gds
Brazed on: Pip, tunnels, eye, T.A. bosses, 3 guides top of top tube, Mafac brazed on and Mafac bridge, each ticked
Finish: Tangerine flam
Customer: Mr Burnett, Ruddington

Own this sheet

£110

A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

See it framed — £110

Print only £35

See it before you buy · Pay by card or PayPal · Free UK postage

A print of the 82116 sheet, framed — to scale above a two-metre sofa

Own it? Remember it?

Nobody has come forward for 82116 yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.

Send photographs and what you know

Read before anything appears · Nothing published without it
