Frame

9302

Untraced

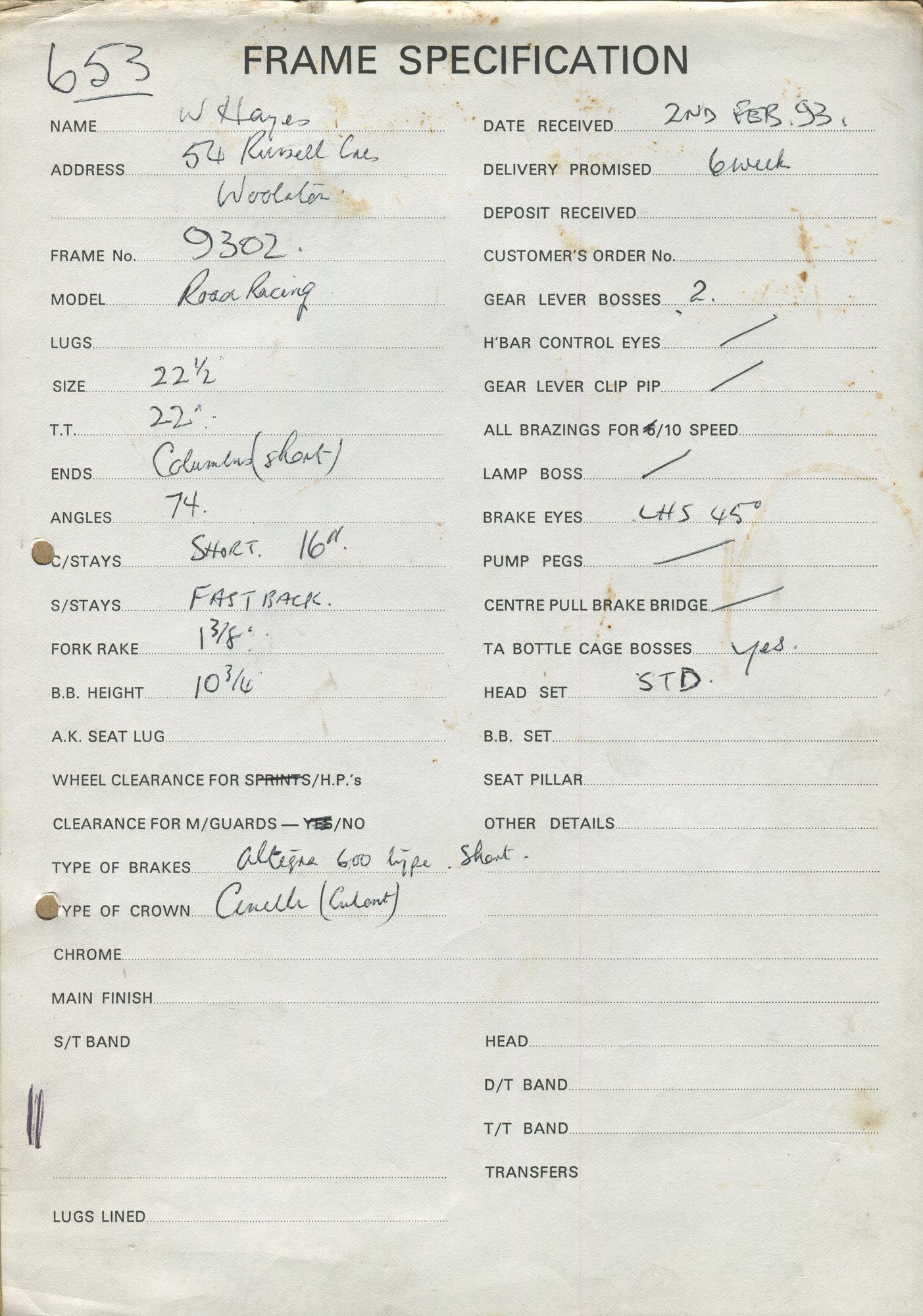

“653”, underlined, is written across the top left corner for the tubing. Delivery was promised at six weeks and no deposit is recorded. The brakes line is read as “Ultegra 600 type, short” but the first word is in a fast hand and is not certain, and the district on the address line reads closer to “Woolaton” than Wollaton. Several of the braze-on lines (h'bar control eyes, gear lever clip pip, lamp boss, pump pegs, centre pull brake bridge) carry only a pen stroke, which could be read as a tick or a striking-out; they are left out of the specification above.

Ordered: 2nd Feb 93
Tubing: 653
Frame: 22½
Top tube: 22"
Angles: 74
Forks: 1⅜" rake, Cinelli crown (cutout)
Ends: Columbus (short)
Chainstays: Short, 16"
Seatstays: Fastback
B/bracket: 10¾" height
Headset: STD
Wheels: HPs (sprints struck out), no mudguard clearance (“yes” struck out)
Brazed on: Gear lever bosses (2), brake eyes LHS 45°, TA bottle cage bosses
Customer: W Hayes, Wollaton, Nottingham

Own this sheet

£110

A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

See it framed — £110

Print only £35

See it before you buy · Pay by card or PayPal · Free UK postage

A print of the 9302 sheet, framed — to scale above a two-metre sofa

Own it? Remember it?

Nobody has come forward for 9302 yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.

Send photographs and what you know

Read before anything appears · Nothing published without it
