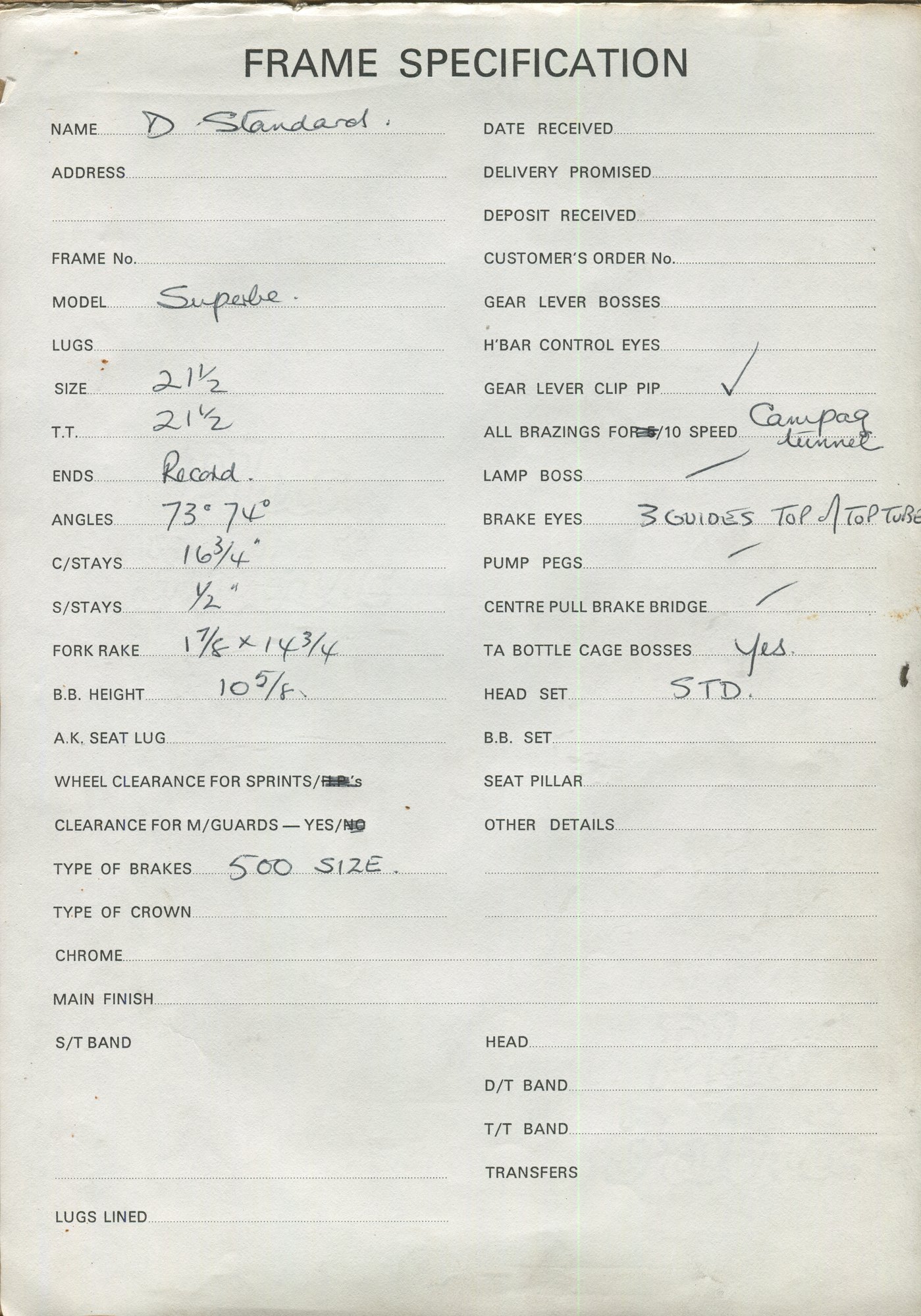

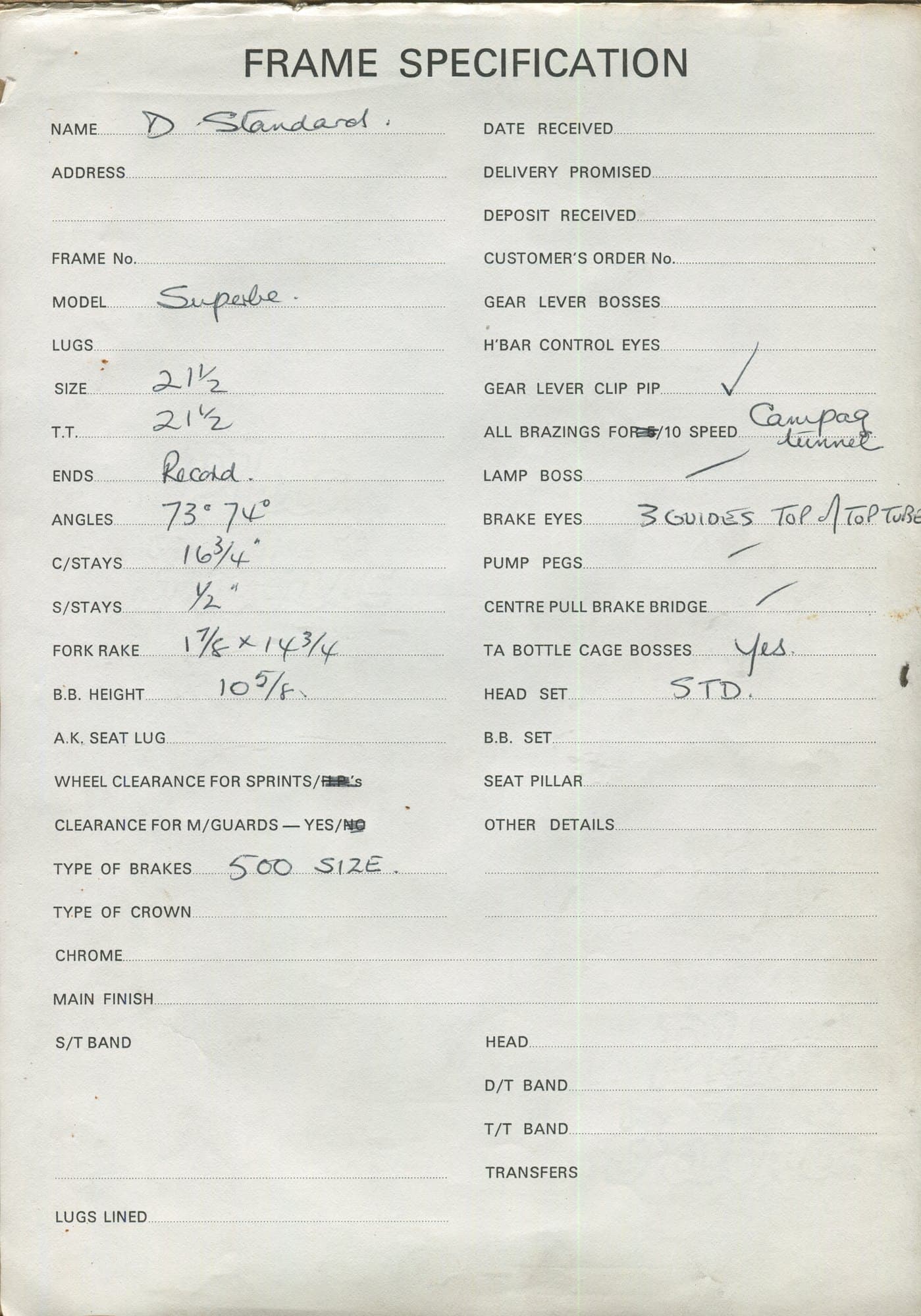

Workshop sheet for Superbe frame u84-b — Hover to magnifyOpen the full sheetThe order sheet, as it was filled in, including whatever was written in the margins.

Unnumbered · 1984

No number

Untraced

The frame-number box is empty, so this 1984-pattern sheet is filed without a number. The name reads simply “D Standard” and no address, date, deposit or finish is recorded anywhere on the sheet. Unusually for the batch, the sprints option is kept on the wheel-clearance line — H.P.'s struck out — while mudguard clearance is still marked yes.

Frame: 21½
Top tube: 21½
Angles: 73° / 74°
Forks: 1⅞ x 14¾
Ends: Record
Chainstays: 16¾"
Seatstays: ½"
B/bracket: 10⅝ height
Headset: STD
Wheels: Sprints (H.P.'s struck out), with mudguard clearance
Brazed on: Gear lever clip pip (ticked), Campag tunnel for 10-speed (the printed 5 struck out), “3 GUIDES TOP of TOP TUBE” on the brake-eyes line, TA bottle cage bosses
Customer: D Standard

Own this sheet

£110

A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

See it framed — £110

Print only £35

See it before you buy · Pay by card or PayPal · Free UK postage

A print of the u84-b sheet, framed — to scale above a two-metre sofa

Own it? Remember it?

Nobody has come forward for u84-b yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.

Send photographs and what you know

Read before anything appears · Nothing published without it
