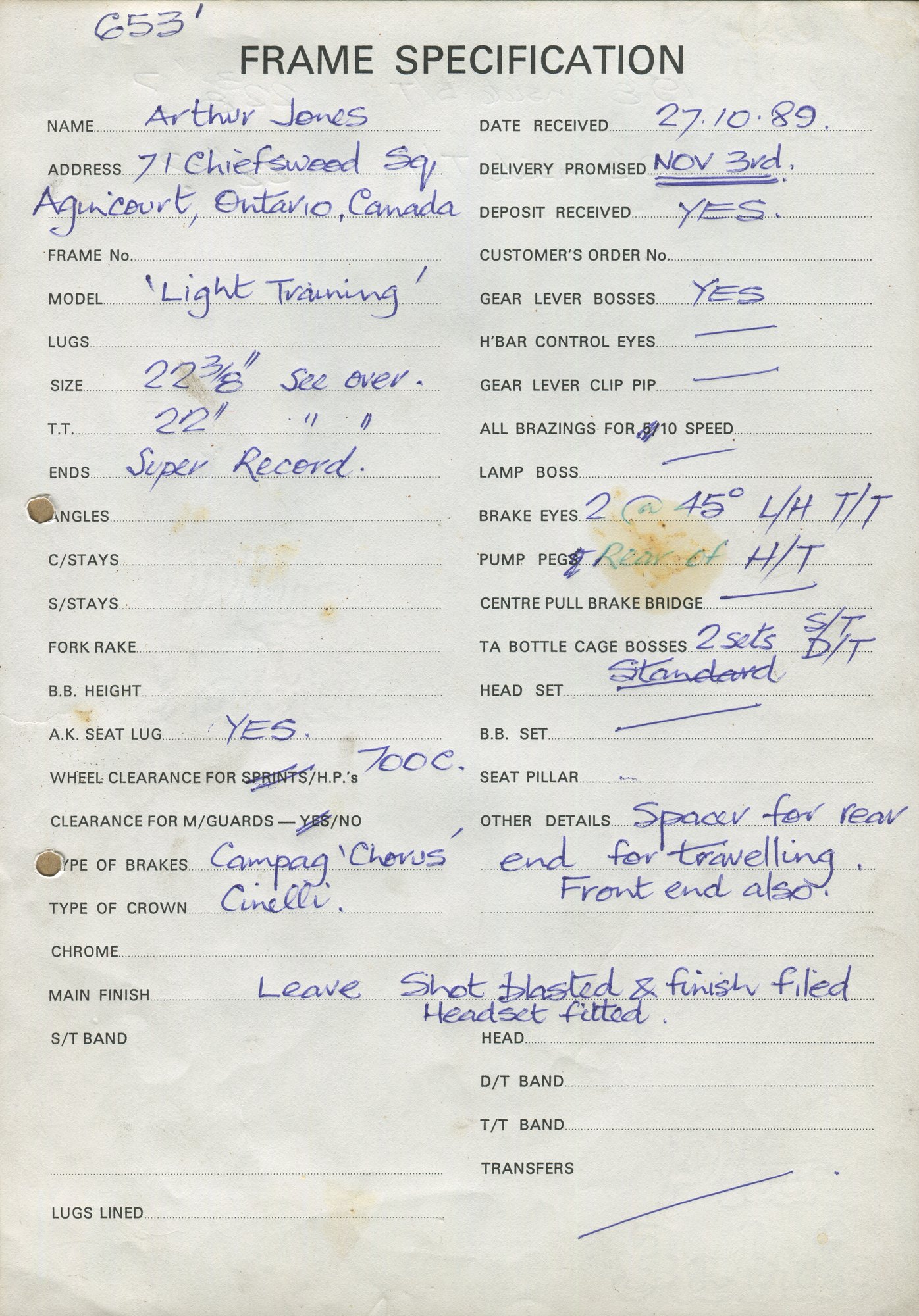

Workshop sheet for Superbe frame u89-2 — Hover to magnifyOpen the full sheetThe order sheet, as it was filled in, including whatever was written in the margins.

Unnumbered · 1989

No number

Untraced

An export order with no frame number, which is why the register keys it as an unnumbered 1989 sheet. OTHER DETAILS asks for a spacer in the rear end for travelling, “Front end also”, and the finish line has the frame leaving the shop in bare metal, shot blasted and finish filed with the headset fitted. “See over” is written against both the size and the top tube, but the reverse of the sheet is not among the scans. Delivery was promised “NOV 3rd”, underlined twice, a week after the date received, with the deposit recorded as “YES”; mudguard clearance “yes” is struck out and the A.K. seat lug is marked “YES”.

Ordered: 27.10.89
Tubing: 653
Frame: 22⅜"
Top tube: 22"
Forks: Cinelli crown
Ends: Super Record
Headset: Standard
Wheels: 700c (sprints struck out), mudguard clearance “yes” struck out
Brazed on: Gear lever bosses, two brake eyes at 45° left-hand on the top tube, pump pegs at the rear of the head tube, two sets of TA bottle cage bosses on seat tube and down tube
Finish: “Leave Shot blasted & finish filed Headset fitted”
Customer: Arthur Jones, Agincourt, Ontario, Canada

Own this sheet

£110

A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

See it framed — £110

Print only £35

See it before you buy · Pay by card or PayPal · Free UK postage

A print of the u89-2 sheet, framed — to scale above a two-metre sofa

Own it? Remember it?

Nobody has come forward for u89-2 yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.

Send photographs and what you know

Read before anything appears · Nothing published without it
