Frame

9001

Untraced

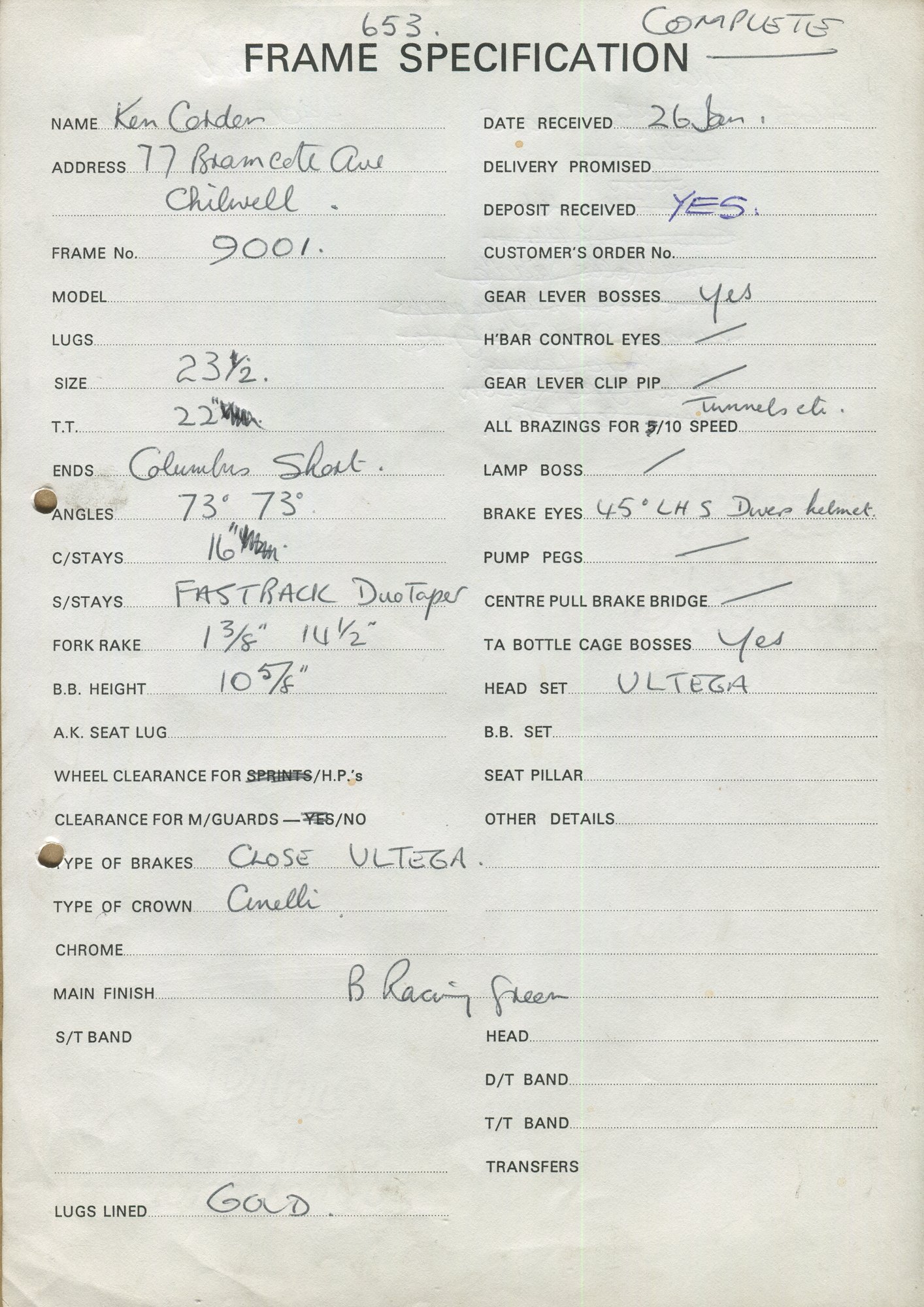

Written across the head of the sheet: “COMPLETE”, with a pencil “653.” beside the title matching the Reynolds 653 pencilled on neighbouring sheets, so this was an order for a whole bicycle. The date received is “26 Jan.” with no year given anywhere on the sheet, so none is recorded here; a deposit is marked “YES”. Words after the top-tube and chainstay figures have been scribbled out and cannot be read. The brake-eye entry reads “45° LHS Divers helmet.”, an odd phrase read from a fast hand, and “Ultega” is the sheet's own spelling on both the brakes and headset lines. The surname reads Corden but could as easily be Carden.

Ordered: 26 Jan
Tubing: 653
Frame: 23½
Top tube: 22"
Angles: 73° / 73°
Forks: 1⅜" rake x 14½", Cinelli crown
Ends: Columbus Short
Chainstays: 16"
Seatstays: Fastback Duo Taper
B/bracket: 10⅝"
Headset: Ultega
Wheels: HPs (sprints struck out), no mudguard clearance (yes struck out)
Brazed on: Gear lever bosses, all brazings for 5/10 speed (“Tunnels etc.”), brake eyes 45° LHS (“Divers helmet”), TA bottle cage bosses
Finish: B Racing Green, lugs lined gold
Customer: Ken Corden, Chilwell

Own this sheet

£110

A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

See it framed — £110

Print only £35

See it before you buy · Pay by card or PayPal · Free UK postage

A print of the 9001 sheet, framed — to scale above a two-metre sofa

Own it? Remember it?

Nobody has come forward for 9001 yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.

Send photographs and what you know

Read before anything appears · Nothing published without it
