Frame

841015

Untraced

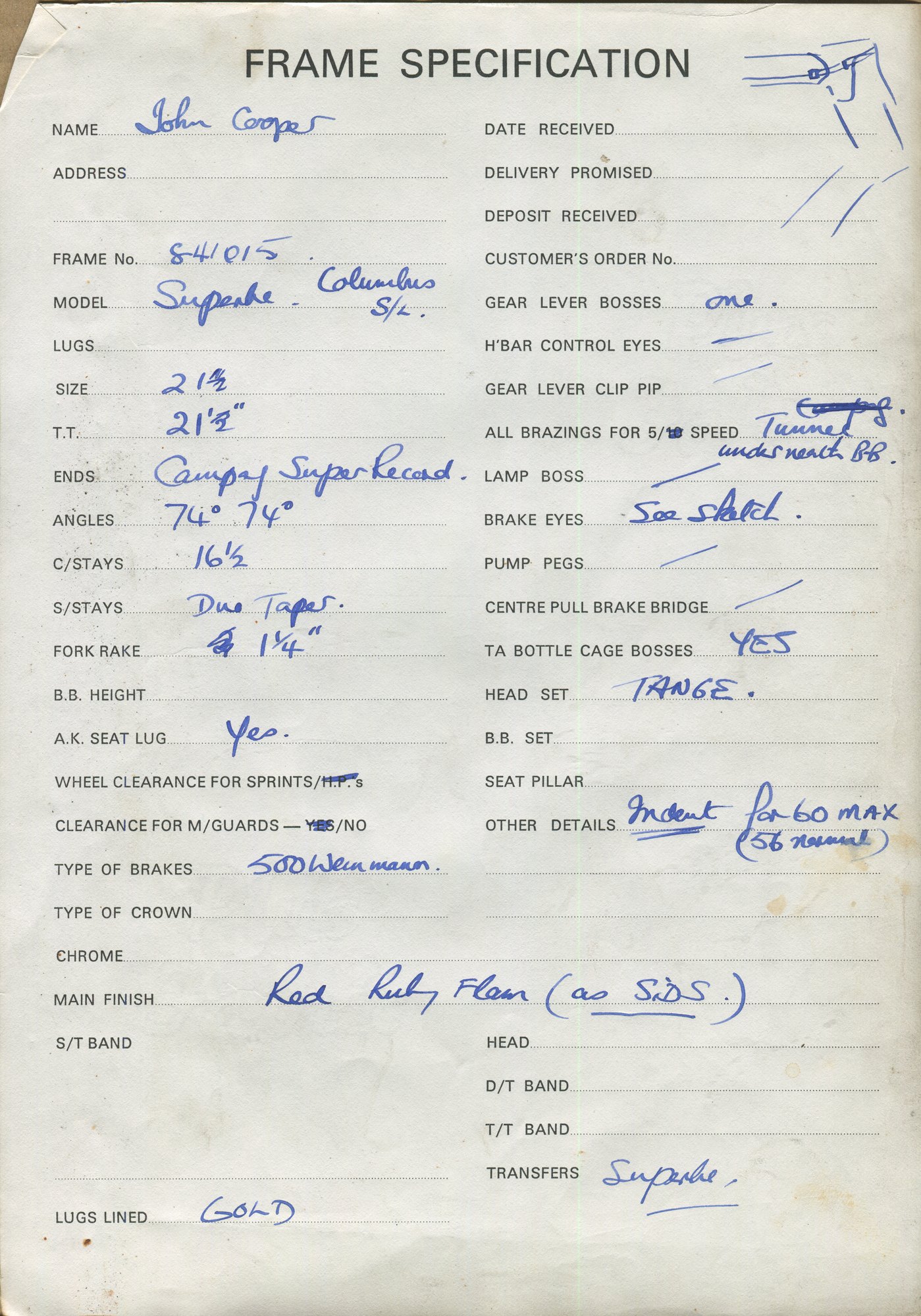

No address and no date appear anywhere on the sheet, so no year is recorded. A small sketch in the top right corner shows the seat-cluster arrangement the “see sketch” note against the brake eyes points to. OTHER DETAILS reads “Indent for 60 MAX (56 normal)”, underlined. The main finish quotes the sheet exactly: “Red Ruby Flam (as Sid's)”.

Tubing: Columbus S/L
Frame: 21½
Top tube: 21½"
Angles: 74° / 74°
Forks: 1¼" rake
Ends: Campag Super Record
Chainstays: 16½
Seatstays: Duo Taper
Headset: Tange
Wheels: Sprints (H.P.'s struck out); mudguard clearance “Yes” struck out
Brazed on: Gear lever bosses (“one”), tunnels underneath the B.B. for 5-speed (the printed 10 struck out, “Campag” written then struck), brake eyes “see sketch”, TA bottle cage bosses
Finish: Red Ruby Flam (“as Sid's”, underlined), lugs lined gold, Superbe transfers
Customer: John Cooper

Own this sheet

£110

A high-resolution print of the sheet, not the original. Giclée on enhanced matte art paper, mounted in snow white, glazed, in a solid wood frame. Free UK postage. £15 goes to Lincs & Notts Air Ambulance.

See it framed — £110

Print only £35

See it before you buy · Pay by card or PayPal · Free UK postage

A print of the 841015 sheet, framed — to scale above a two-metre sofa

Own it? Remember it?

Nobody has come forward for 841015 yet. If it is in your shed, or you remember it being built, ridden or sold, send a photograph and whatever you know.

Send photographs and what you know

Read before anything appears · Nothing published without it
